Berthing D Type Marine Rubber Fender Customized Size Tug Boat Fender

  • 1
  • 2

Brand Name : LuHang

Model Number : LH2540

Certification : CCS BV Certification ISO17357 ISO9001

Place of Origin : Qingdao, China

MOQ : 1 Unit

Price : To be negotiated

Payment Terms : T/T, L/C

Supply Ability : 30 Units Per Month

Delivery Time : 10-15 work days

Packaging Details : Inflated or Deflated on Pallet

Material : Rubber

Diameter : Customize

Length : Customize

Warrenty : 12 month

Name : Solid ubber fender

Part : Pneumatic Rubber Fender

Feature : No Air Leakage, Low Reaction, Low Cost

Type : 50kPa Or 80kPa

Specification : Dia 0.5m-4.5m, L 0.7m-9m/Customized

Application : Application

Packing : Nude Packing/As Requirement

Highlight : Yokohama Ship Fenders, Yokohama Bumpers

Contact Now

Marine Berthing D type Rubber Fender Size Customize Tug Boat Fender

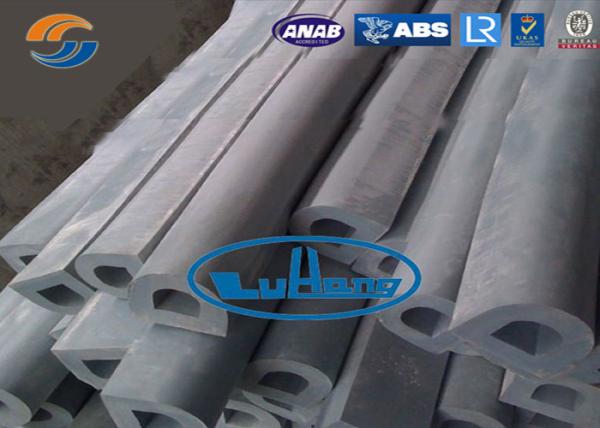

D type rubber fender is one kind multi-purpose profile fender. D type rubber fender can be used as the secondary protection system for frame type wharf and shore protection of the wharf. It also can be used for the tug or barge.
LUHANG is a trusted supplier for high performance marine rubber fenders for ports , jetties , wharfs , quays and harbours in the global market . Our fender factory in Shandong province takes pride in supplying ultra-reliable , high level rubber fenders while practising highly-automated precise manufacturing procedures to keep our production competitive , consequently providing the best value to our customers .
A marine rubber fender acts as a “dock bumper” to absorb the kinetic energy of a boat / vessel during berthing against a jetty or a quay wall .
Mrine D type rubber fenders have easy to install and replace. It can be installed vertically or horizontally. We have two types D-type rubber fender.
One is vertical side profile. Another type is inclined side profile.
D type rubber fenders have reasonable reaction force. Its energy absoption is high. But reaction force is reltively too high. Comparing D type rubber fender has the lowest energy absorption for reaction force per unit.
Berthing D Type Marine Rubber Fender Customized Size Tug Boat Fender
Specification:
Height(mm Length(mm B A P N Weight kg
250 1000 250 150 700 2 90
250 1000 250 100 400 3 100
250 1500 250 150 600 3 100
250 1500 250 100 325 5 150
300 900 300 150 600 2 90
300 1000 300 150 700 2 100
300 1000 300 100 400 3 100
300 1500 300 150 600 3 150
300 1500 300 100 325 5 150
500 900 500 100 350 3 252
500 1000 500 100 400 3 280
500 1500 500 100 325 5 420
Installation of D type Rubber Fenders
The representative installation material of D type rubber fenders include bolts, nuts, pressing board, washer. Refer the below drawing. For more details, please contact us.
